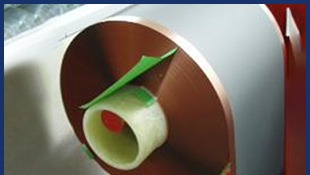

이차전지용 전극

설명

전극은 전지의 성능과 에너지 밀도를 결정하는 중요한 소재입니다. 고객이 디자인한 전극이나 탑머티리얼이 디자인한 전극을 생산해서 공급하고 있습니다.

재료

Electrode Active Material Current collector Solvent
양극 NCM 또는
LFP
Al foil
(t 10~20µm)
NMP or
Water(LFP)
음극 Graphite 또는
C/Si compounds composite
Cu foil
(t 6~20µm)
Water
LTO Al foil
(t 10~20µm)
NMP or
water

사양

연속 또는 간헐 코팅

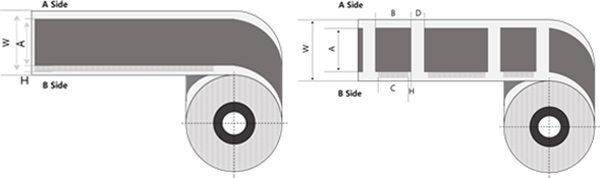

Dimension Specification(mm)
W: Foil width Max 900
A: Coating width Max 800
B : A side coated length 40~2000
C : B side coated length 40~2000
D : Non coated length 7~50
H: A/B edge alignment <±0.5
