The electrodes are key components of Li cells for the performance and energy density. We manufactures and provides electrodes designed
by customers or designed by Top Material.
| Electrode | Active Material | Current collector | Solvent |
| Cathode | NCM or LFP |
Al foil (t 10~20µm) |
NMP or Water(LFP) |
| Anode | Graphite or C/Si compounds composite |
Cu foil (t 6~20µm) |
Water |
| LTO | Al foil (t 10~20µm) |
NMP or water |

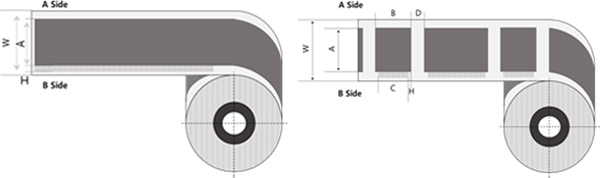

Continuous or Intermittent Coating
| Dimension | Specification(mm) |
| W: Foil width | Max 900 |
| A: Coating width | Max 800 |
| B : A side coated length | 40~2000 |
| C : B side coated length | 40~2000 |
| D : Non coated length | 7~50 |
| H: A/B edge alignment | <±0.5 |
